3D profile for Mendocino 3/4" door.

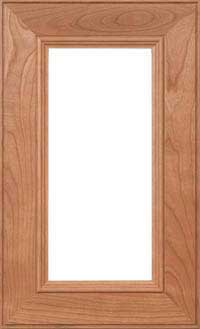

Mendocino 3/4" Glass Door (587G)
- Minimum Width: 9"
- Maximum Width: 30"
- Minimum Height: 9"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 66"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
E1: Center rail required at 48" and above.
N1: Center rail required on glass doors at 66" and above.
W1: Minimum French Lite opening required 3-1/2" x 3-1/2" before molding.
I2: Requires additional delivery time.
C4: Outside edge detail steps down 1/16" inch.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
S1: Center rail, if required, is 2-1/2".
