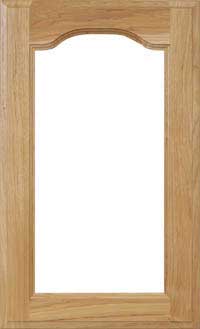

Flat Arch 3/4" Glass Door (154G)

  • Minimum Width: 9.5"
  • Maximum Width: 26.25"
  • Minimum Height: 9.5"
  • Maximum Height: 72"
  • Thickness Of Door: 0.75"
  • Center Rail at: 66"

B1: If one minimum is used, add 4" to the other.

C1: Maximum can be exceeded with No Guarantee and possible option charge.

D4: Glass and French Lites come standard with Wood Stops from Irwindale, CA and Rubber Stops from Monroe, NC (when applicable).

F1: Center rail required at 48" and above and is not arched.

N1: Center rail required on glass doors at 66" and above.

Z1: Arched rail height at side of rail is 3-1/4".

Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
