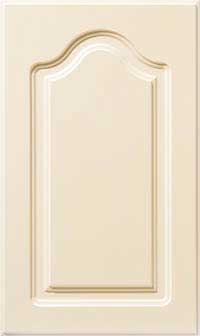

DL8 3/4" Door (782)

  • Minimum Width: 9.5"
  • Maximum Width: 46"
  • Minimum Height: 9.5"
  • Maximum Height: 96"
  • Thickness Of Door: 0.75"
  • Center Rail at: No Center Rail

M6: French Lite doors have rounded inside corners.

P6: French Lites have a single vertical mullion on center only. Multiple vertical mullions available on arc doors at an additional cost.

Z6w: Center rail is available at an additional cost.

G7: No guarantee on high gloss doors over 42".

J8: Minimum routed drawer front height is 5-1/2".

A9: Routed drawer fronts do not come with an arch unless otherwise specified.

F9: Doors ordered below Minimum Height order as a drawer Front and the Routed Drawer Front option charge will apply.
