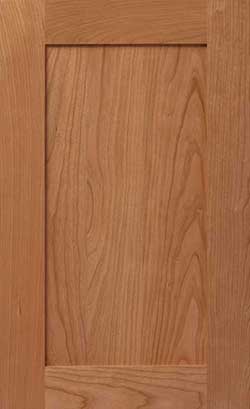

3D profile for Dalton 3/4" door.
Dalton 3/4" Door (286)
- Minimum Width: 7.5"
- Maximum Width: 26"
- Minimum Height: 7.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 48"
- Construction: Butt Joint & Recessed Panel
- Product Line: Wood
- To Customize Profiles: Order Custom Design Series Square Recessed Panel (155)
- Stile and Rail Width: 2.25"
- Standard Profiles: IE1, OE009, P1
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
E1: Center rail required at 48" and above.
N1: Center rail required on glass doors at 66" and above.
H2: Door comes standard No Lip/No Detail (NLND).
Z5: Hand cope center rail is available at $60 option charge.
