Generic 3D Profile for CDS Recessed Panel Door Style. The look will change based on your chosen profiles.
-
CDS+ Recessed 3/4 Door shown with IE198, OE7, 2-1/2" Frame in Alder Select -

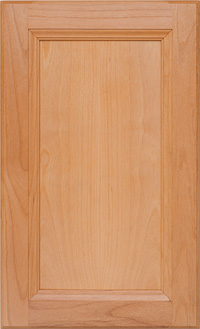

CDS+ Recessed 3/4 Door shown with IE314 and OE7 in Alder Select
CDS+ Recessed 3/4 Door (163)
- Minimum Width: 7.5"
- Maximum Width: 30"
- Minimum Height: 7.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 48"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
D4: Glass and French Lites come standard with Wood Stops from Irwindale, CA and Rubber Stops from Monroe, NC (when applicable).
G1: Center rail required at 50" and above.
G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.
N1: Center rail required on glass doors at 66" and above.
Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
