Decore-ative Specialties is able to offer undermount clips from several manufacturers, pre-installed on the underside of any assembled drawer box.

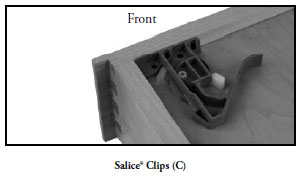

Salice®
Salice® Progressa Adjustable Clips L&R (SP):
Notch Size: 2-1/2
Box Minimum Width: 5-5/8"
To order uninstalled, use part # 7511.
Salice Progressa Narrow Clips will be installed automatically for sizes between 5-5/8” and 6-3/8” width.

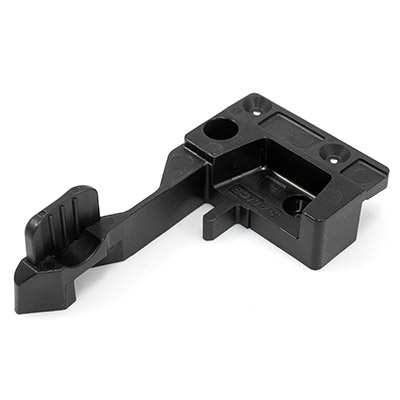

Salice® Progressa Narrow Clips L&R:
To order uninstalled, use part # 7512.
Salice® Progressa Adjustable Clips for Rear Tilt L&R (SR):
Notch Size: 3-3/4"
Box Minimum Width: 10-3/4" Use when adding Rear Tilt and a wider back notch is needed. Clips are the same as Standard. To order uninstalled, use part # 7511. Salice Progressa Narrow Clips will be installed automatically for sizes between 5-5/8” and 6-3/8” width.
Salice® Progressa Narrow Clips L&R:
To order uninstalled, use part # 7512.

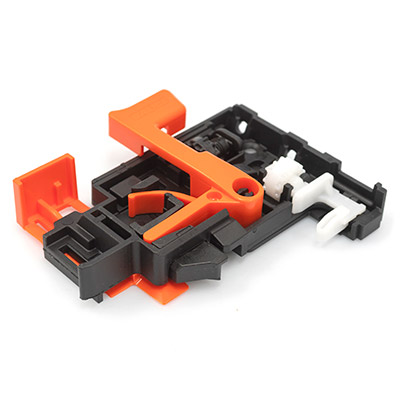

Salice® Futura 6-Way Adjustable Clips L&R (S6):
Notch Size: 2-1/2
Box Minimum Width: 5-5/8"
To order uninstalled, use part # 7511.
Salice Futura Narrow Clips will be installed automatically for sizes between 5-5/8” and 6-3/8” width.

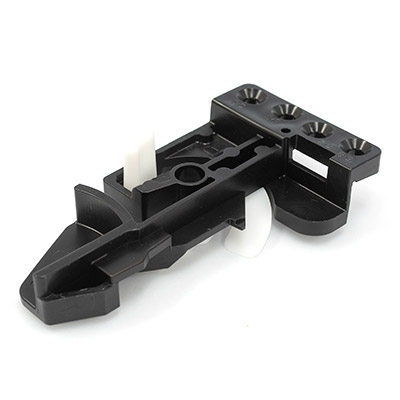

Salice® Futura Narrow Clips L&R:
To order uninstalled, use part # 7049.

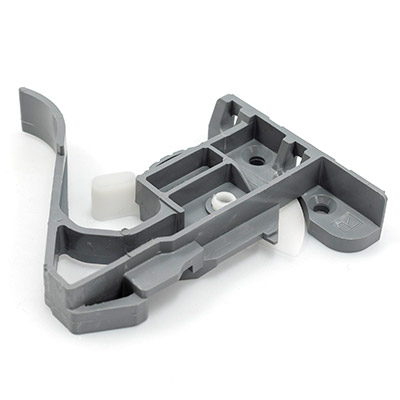

Salice® Futura Standard Clips L&R (SA):
Notch Size: 2-1/2
Box Minimum Width: 5-5/8"
To order uninstalled, use part # 7511.
Salice Futura Narrow Clips will be installed automatically for sizes between 5-5/8” and 6-3/8” width.
Salice® Futura Narrow Clips L&R:
To order uninstalled, use part # 7049.
Blum®

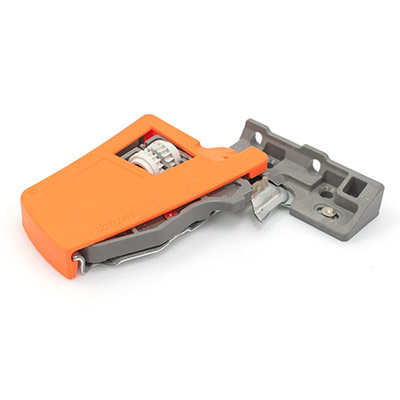

Blum® Movento Standard Clips L&R (B8):
Notch Size: 2-1/2"
Box Minimum Width: 7-15/16"
To order uninstalled, use part # 7827.
Blum Movento Narrow Clips will be installed automatically for sizes between 5" and 7-15/16" width.

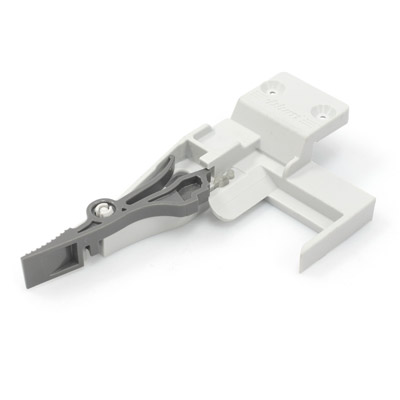

Blum® Movento Narrow Clips L&R:
To order uninstalled, use part # 7828.
Blum® Movento Standard Clips for Tip-on L&R (B7):
Notch Size: 4-15/16"
Box Minimum Width: 12-5/8"
To order uninstalled, use part # 7827.
Use when adding Tip-on and a wider back notch is needed. Clips are the same as Standard.
Blum Movento Narrow Clips will be installed automatically for sizes between 5" and 7-15/16" width.
Blum® Movento Narrow Clips L&R:
To order uninstalled, use part # 7828.

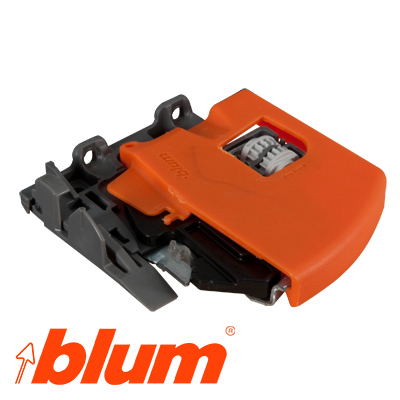

Blum® Tandem Side-to-Side Adjustable Clips L&R (BT):
Notch Size: 1-3/8"
Box Minimum Width: 8"
To order uninstalled, use part # 7036.
Blum Tandem Narrow Clips will be installed automatically for sizes between 5" and 6-3/16" width.

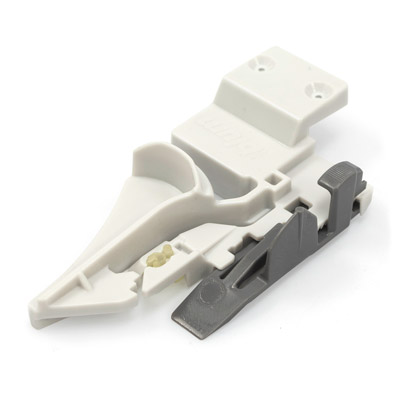

Blum® Tandem Narrow Clips L&R :
To order uninstalled, use part # 7826.

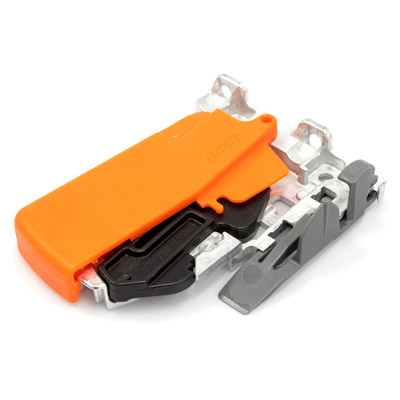

Blum® Tandem Clips L&R (B3) :
Notch Size: 1-3/8"
Box Minimum Width: 6-3/16"
Installed on boxes requesting Side-to-Side Adjustable Clips between 6-3/16" and 8" width.
To order uninstalled, use part # 7137.
Blum Tandem Narrow Clips will be installed automatically for sizes between 5" and 6-3/16" width.
Blum® Tandem Narrow Clips L&R:
To order uninstalled, use part # 7826.
As the dimensions of the undermount clips vary by design, the minimum width of a drawer box will vary as well to accommodate the model of clips ordered.
