File notching is a highly functional option for custom drawer boxes, and is available on any assembled drawer box. With many options to choose from, they can be ordered to fit your exact need.
The file bar is standard at 25.4mm (1") wide by 3.2mm (1/8") thick, and the file notch follows the same sizing to provide a tight fit.

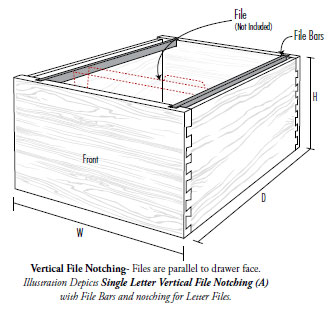

File Notch A
- Ideal Width Range: 14-1/2” – 17-7/16”.
- File Bars: 2 included.
- Vertical File Notch.
File Notch B
- Ideal Width Range: 17-1/2” – 27-7/16”.
- File Bars: 2 included.
- Vertical File Notch.

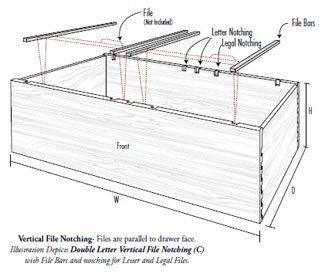

File Notch C
- Ideal Width Range: 27-1/2” – 30-5/16”.
- File Bars: 4 included.
- Vertical File Notch.

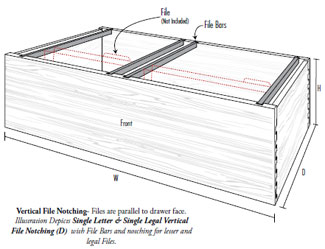

File Notch D
- Ideal Width Range: 30-1/2” – 33-7/16”.
- File Bars: 4 included.
- Vertical File Notch.

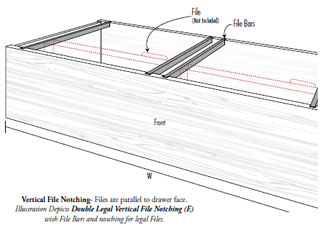

File Notch E
- Ideal Width Range: 33-1/2” – 48”.
- File Bars: 4 included.
- Vertical File Notch.

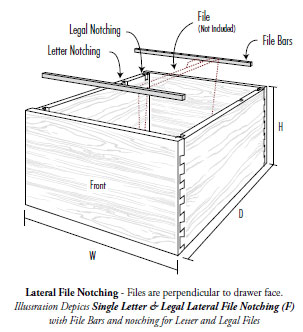

File Notch F
- Ideal Width Range: 8” – 27-7/16”.
- File Bars: 2 included.
- Lateral File Notch.
